A new, high-performance standard for belt-drive analog turntables

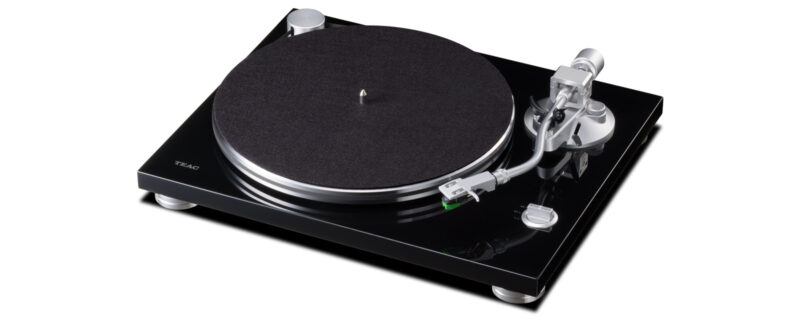

The TN-3B is a stylish, sleek-looking belt-driven turntable with a built-in MM-type PHONO EQ amplifier and USB digital output.
It employs a new tonearm with knife-edge, pivot-point bearings, co-developed with SAEC, the high-end tonearm manufacturer, for superlative stability and resolution.
The belt-drive mechanism, meanwhile, helps mitigate any unwanted cogging effects (ie fine pulsing) from the operation of the motor, to ensure a precise and smooth platter rotation.
The TN-3B also employs a high-precision NJM8080 op-amp in its in-built Phono EQ amplifier, allowing the user to enjoy the sound of their vinyl records with low distortion and in high quality. In addition, a built-in Analog-to-Digital converter and USB port allow users to digitise their vinyl libraries on their PC/Mac.
The TN-3B delivers a natural and well-balanced sound quality and is quick and easy to set up and start enjoying. We believe it sets a new standard that will satisfy the needs of both audiophiles and ardent record collectors.
- 2-speed, belt-drive turntable offering 33-1/3 and 45 rpm speeds
- Knife-edge, pivot-point tonearm designed by high-end tonearm manufacturer SAEC
- Static-balanced, S-shaped tone-arm with pre-installed audio-technica AT-VM95E MM cartridge
- Die-cast aluminum platter
- USB digital output for digital archiving on PC/Mac
- PHONO/LINE analog outputs (switchable)
- Built-in PHONO EQ amplifier, compatible with MM-type cartridges
- Hi-fi grade NJM8080 op-amp used in PHONO EQ stage
|Type||Belt-drive (External drive)|
|Rotation Speeds||33-⅓ rpm, 45 rpm|
|Wow-and-Flutters||0.1% or less|
|S/N Ratio||67dB (A-weighted, 20kHz LPF)|
|Needle Pressure Range||0g to 5.0g|
|Compatible Cartridge Weight||3.0g to 12.0g
14g to 23g (including Head-shell)
|Output Voltage||4.0mV (1kHz, 5cm/sec.)|
|Needle Pressure||1.8 to 2.2g (2.0g recommended)|
|Head-shell weight||11g (including screws, nuts, and wires)|
|Compatible Stylus||AT-VMN95E * Average stylus life: approx. 300 hours.|
|Connector||RCA Pin jack × 1 pair (Gold-plated)|
|Connector||USB B-type (DC 5V 100mA USB Bus power required)|
|Audio Format||PCM, 8k/11.025k/16k/22.5k/32k/44.1k/48kHz, 16bit|
|Operating Power||AC 100 to 240V, 50/60Hz|
|Overall Dimensions (W×H×D)||420 × 117 × 356 mm /
16.5″ × 4.6″ × 14.0″ (including protrusions)
|Weight||approx. 5.0kg / 11.0 lbs.|
|Included Accessories||Felt Mat, EP Adapter, Counter Weight, Head-shell (AT-VM95E installed), Platter, Dust Cover, Hinges × 2, RCA Audio cable with GND terminal, AC Adapter (GPE053A-V120050), Owner’s Manual (including Warranty Card)|
