Description

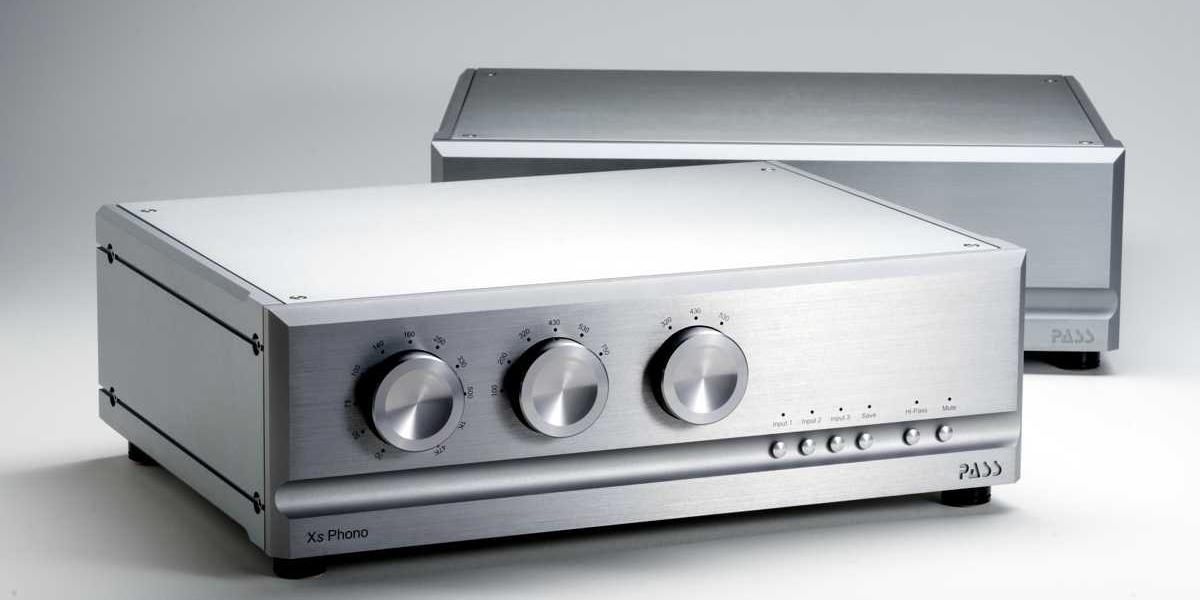

The XSPhono preamplifier represents an all-out assault on the state-of-art in Vinyl and the most intensive and difficult design effort made at Pass Laboratories. The final product of this massive effort extracts the utmost performance from a simple topology and operates with the extremely small and delicate signals coming from today’s wide variety of phono cartridges. The result is music that emerges from a quieter background and blooms into a richer, more precise soundstage.
Technical specifications:
- Gain 56, 66, 76dB
- RIAA response plus/minus .1 dB 20-20 KHz
- RIAA response plus/minus .1 dB 20-20 KHz
- Distortion < .005 % THD @ 1mV MC input
- Maximum Output 38 volts rms balanced @ .1% THD
- Output Impedance 150 SE / 150 Balanced
- Input Impedance 30 ohm – 47K ohm any input
- Power consumption (Watts) 55
- Number of chassis 2
- Dimensions, each chassis 19”W x 14”D x 6.25”H
- Weight (Lbs) 80
- Ship Box Dim 24 x 19 x 23
- Shipping Weight 90
