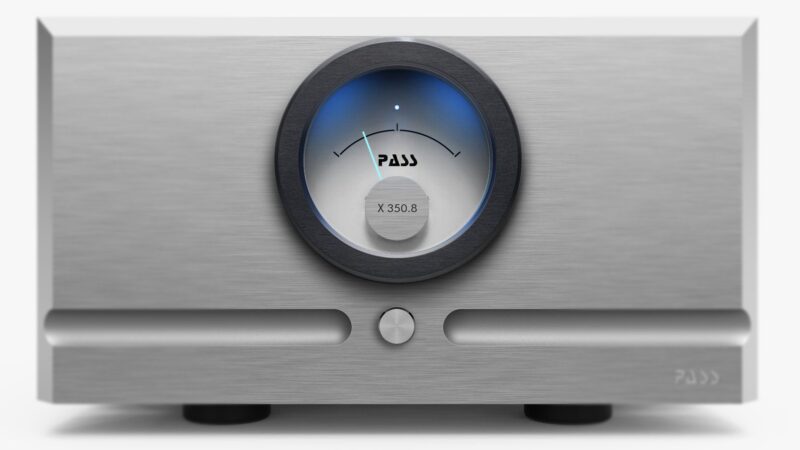

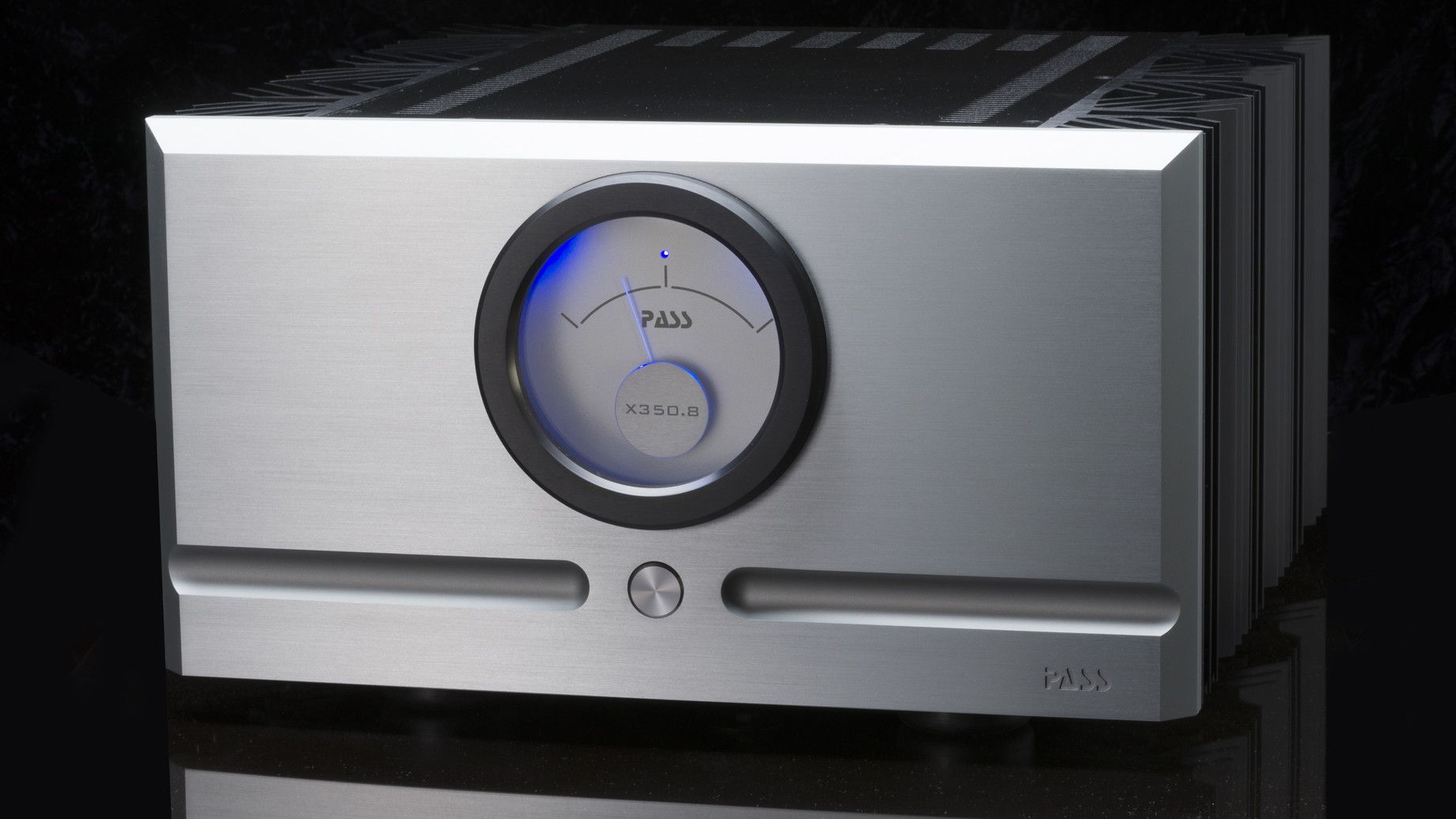

Pass Labs X350.8

At 350 watts per channel class A/B, the Pass Labs X350.8 is the largest and most powerful stereo power amplifier of Pass Labs line-up. Because we care more about how holistic design affects the musical experience and relatively less about how parts affect specifications, you can expect superb and accurate representation of the recording performance and venue, as well as the distinctive layering of instruments captured faithfully.

Technical specifications of the Pass Labs X350.8

• Class: AB
• Type: Stereo
• Gain (dB): 26
• Full Pwr @ 26 dB gain (V): 2.65
• Low Frequency Response: 1.5 Hz
• High Frequency Response: 100 KHz
• Power Output /ch (8 ohm): 350
• Distortion (1 KHz, full power): 1%
• Input Impedance (SE & BAL Kohms): 50/100
• Damping Factor: 150
• Output Noise (uV): 200
• Current Draw @ Idle (Amps): 4.6
• Power Consumption (Watts): 550
• Temperature (deg C.): 53
• Number of Chassis: 1
• Unit Dimensions (W x D x H) (inch): 19 x 21.5 x 11
• Unit Weight: 58kg
