Description

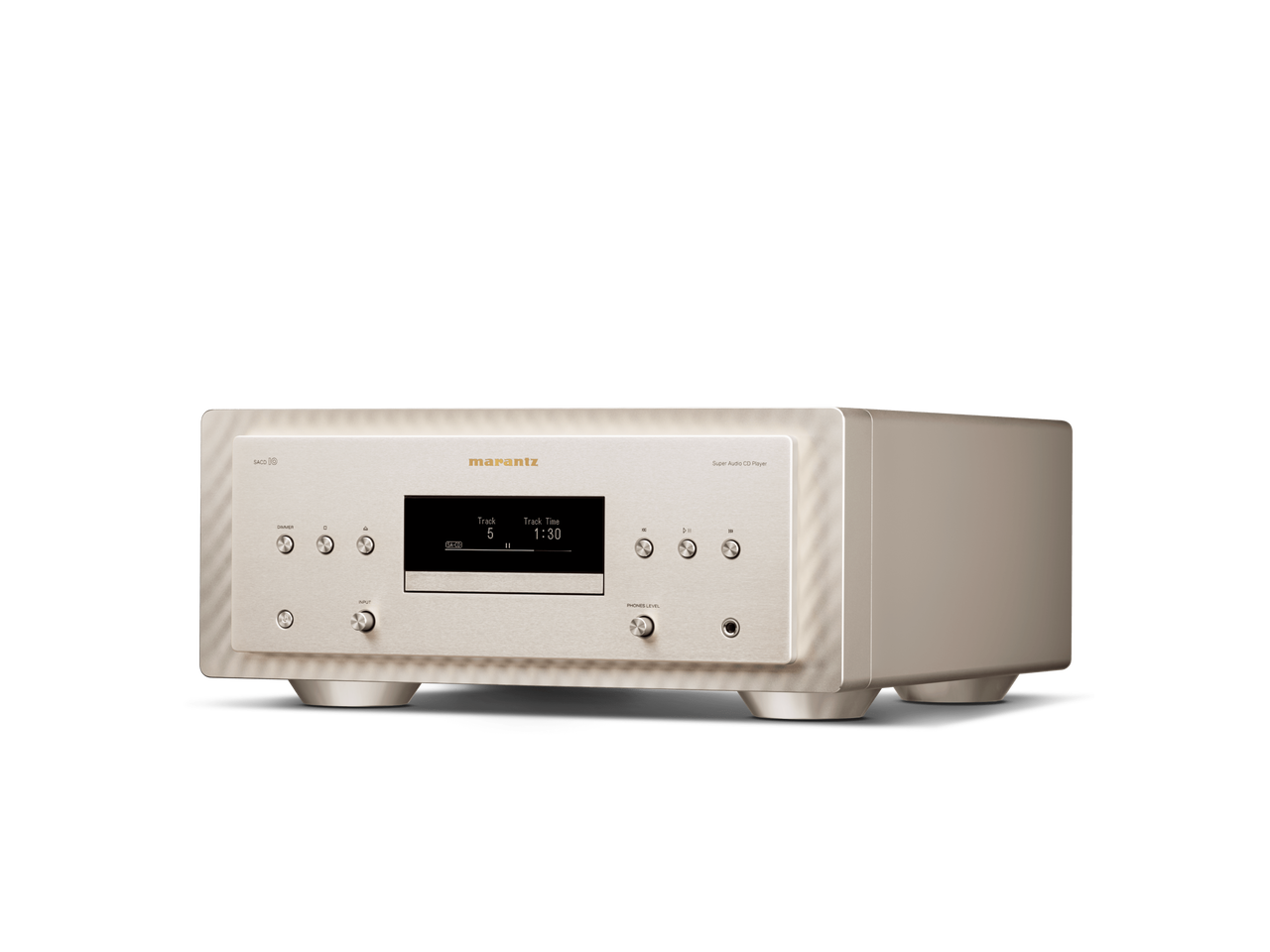

The reference-standard SACD 10 is crafted to be the very best using a fully Marantz designed SACDM-3 disc transport for maximum rejection of resonance.
- Marantz SACDM-3 disc transport
- DSD 256 and PCM 384 / 32 support
- Headphone amplifier

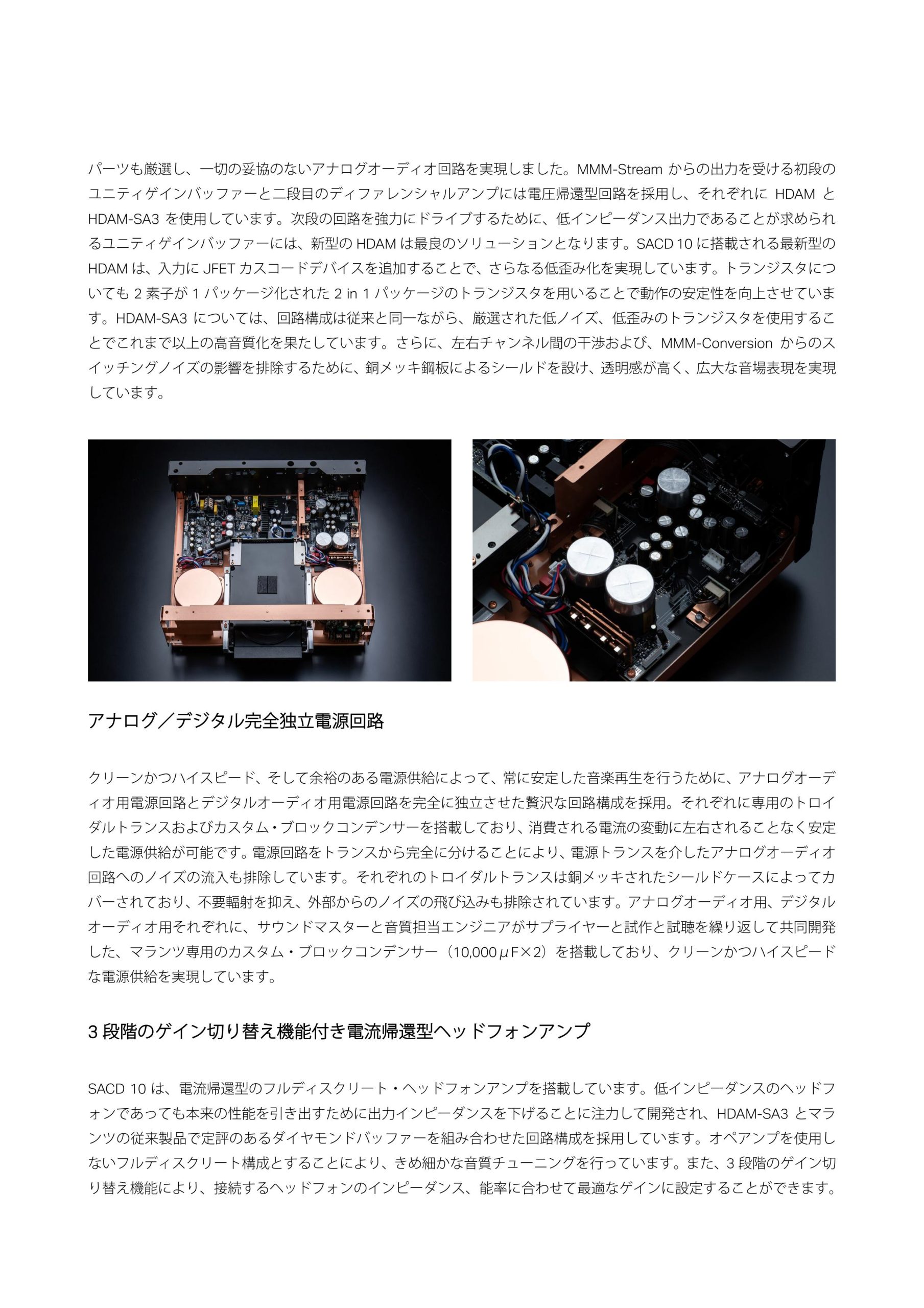

- Dual power supplies with toroidal transformers
- OLED display
- Marantz Industrial Design
Inspired by our past, engineered for our future

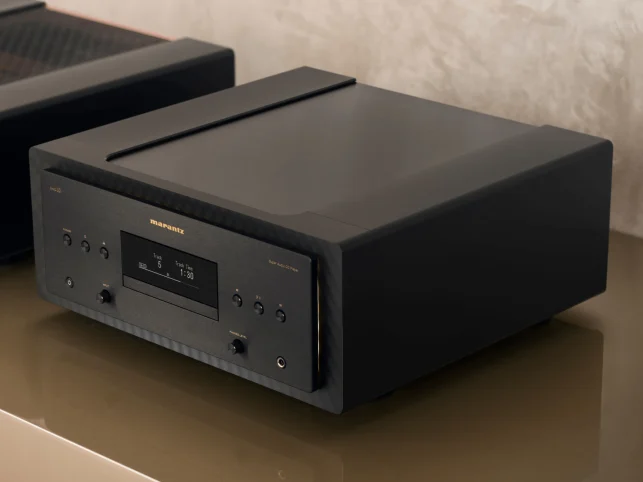

The best of the Best
From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and HDAM module, SACD 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and remarkable design.

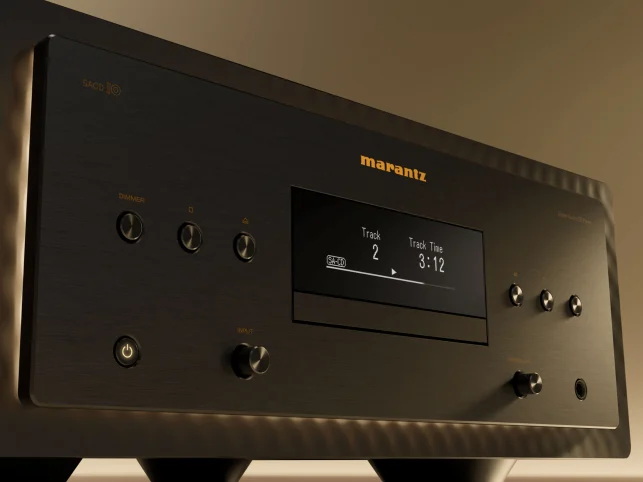

Sound Master Tuned
SACD 10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail than ever before.
Pristine Sound
Made for the ultimate CD and SACD enthusiast, SACD 10 is engineered with updated Marantz Musical Mastering and a next generation HDAM module for impeccably detailed audio reproduction.

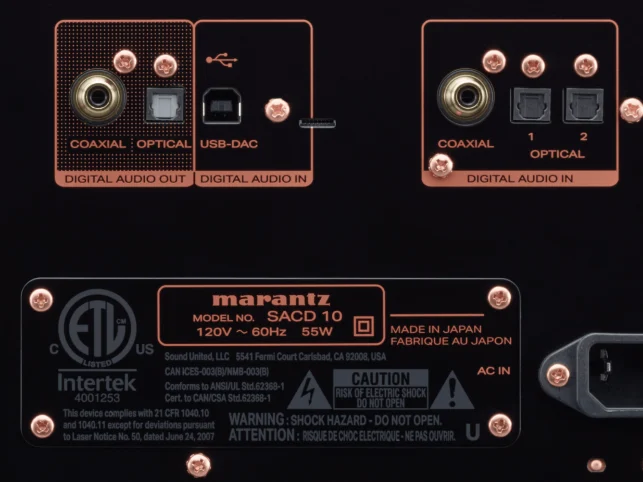

High-res support

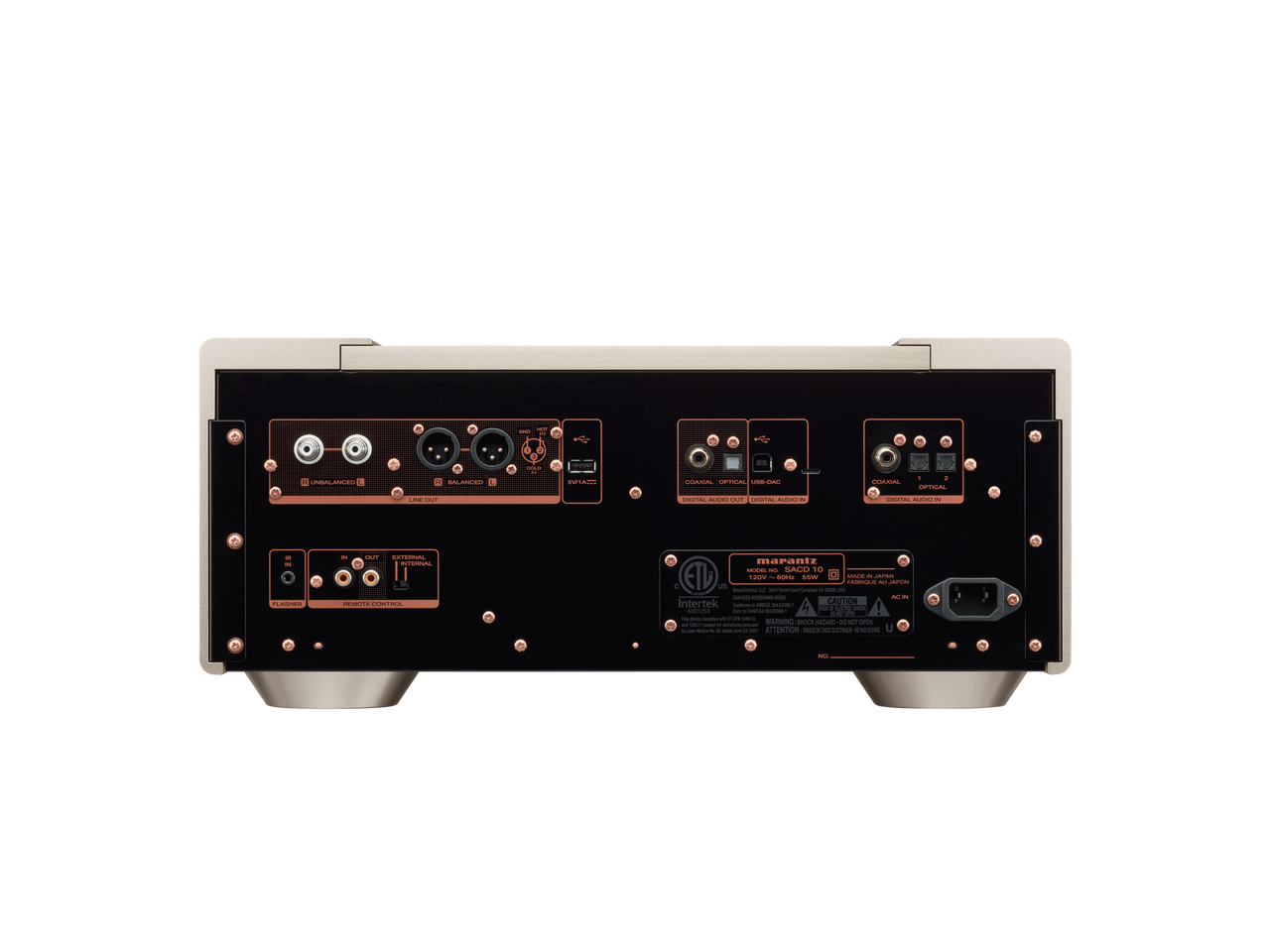

SACD 10 supports balanced sources via USB-A and USB-B DAC, plus DSD 256 and PCM 384 / 32 support. Connectivity options also include coaxial and optical digital outputs and inputs, and fixed level XLR and RCA analog outputs.

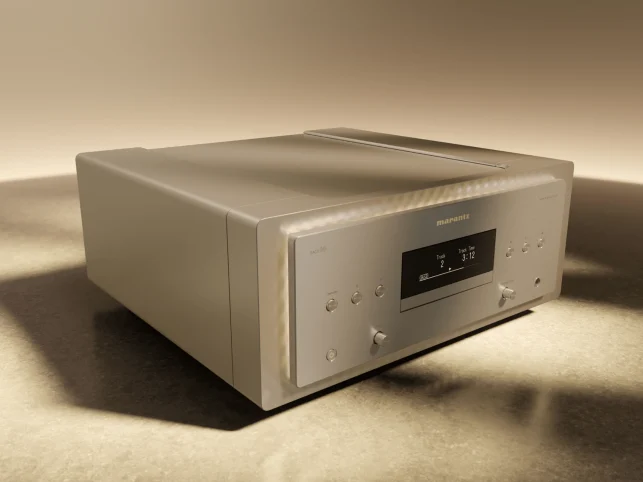

Marantz Industrial Design
With a brushed aluminum control surface, spun finish details, a thick-section aluminum structure, copper-plated, triple-layered chassis, , SACD 10 is in a class of its own. Available in two colorways, Marantz Black and Marantz Champagne to complement any setting.
Specifications
- Unit (W×H×D mm)
440 × 192 × 442 - Net weight
33.0kg - Panel Color
Black / Champagne
Audio
- Frequency Response
SACD: 2Hz–50kHz (-3dB)
CD: 2Hz–20kHz (±1.0dB) - Harmonic distortion
SACD: 0.0004%
CD: 0.0015% - S/N
SACD: 118dB
CD: 116dB - Dynamic range
SACD: 112dB
CD: 98dB - Line Output Leve
UNBALANCED : 2.0Vrms
BALANCED : 4.0Vrms - Headphone Output Level
130mW / 32 ohms - Power Consumption
55W
Less than 0.3W (at Standby)
Audio Feature
- Output Circuit
New HDAM - Power Transformer
Toroidal - Headphone Circuit
Discrete - H/P Amp Gain Setting
Yes (Low / Mid / High) - H/P On.Off Setting
H/P Off automatically, when in use - DAC Circuit
New MMM-Conversion - Dither
MMM-Stream (Dither 1, 2, Off) - Noise Shaper
MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice) - Digital Filter
MMM-Stream
Filter 1, 2 Selectable - Jitter Reducer
Yes - DAC Master Clock Design (No Support for Network Playback)
Yes - Asynchronous mode (for USB-B input)
Yes - Isolator (for USB-B input)
Yes (Complete Isolation System Duo)
Connecticity
- Fixed Analog Output (RCA)
Cinch × 1
Thick nickel plated Maching copper L/R independent terminals - Fixed Balanced XLR Output
1 - Optical input / output (Maximum Support)
2/1
4.1 kHz – 192 kHz - Coaxial input / output (Maximum Support)
2/1
4.1 kHz – 192 kHz - Headphone Output
Yes (φ6.3 x 1) - Remote Control Bus Termina
Yes - Remote Internal / External Switch
Yes - AC Inlet
Yes - Accessory Box
Yes - Remote Controller
RC004PMND - Battery
Yes (AAA ×2) - Power Cord
Yes (ALL region : Audio Grade : OFC) - Other
Stereo RCA Cable ×1
emote connector cable ×1
oA card
