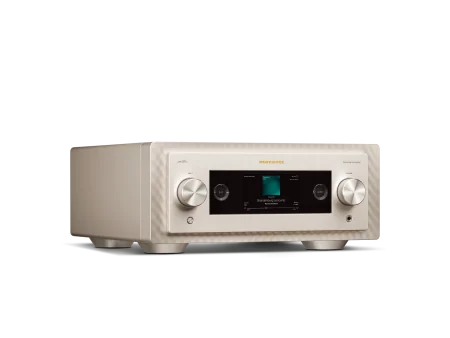

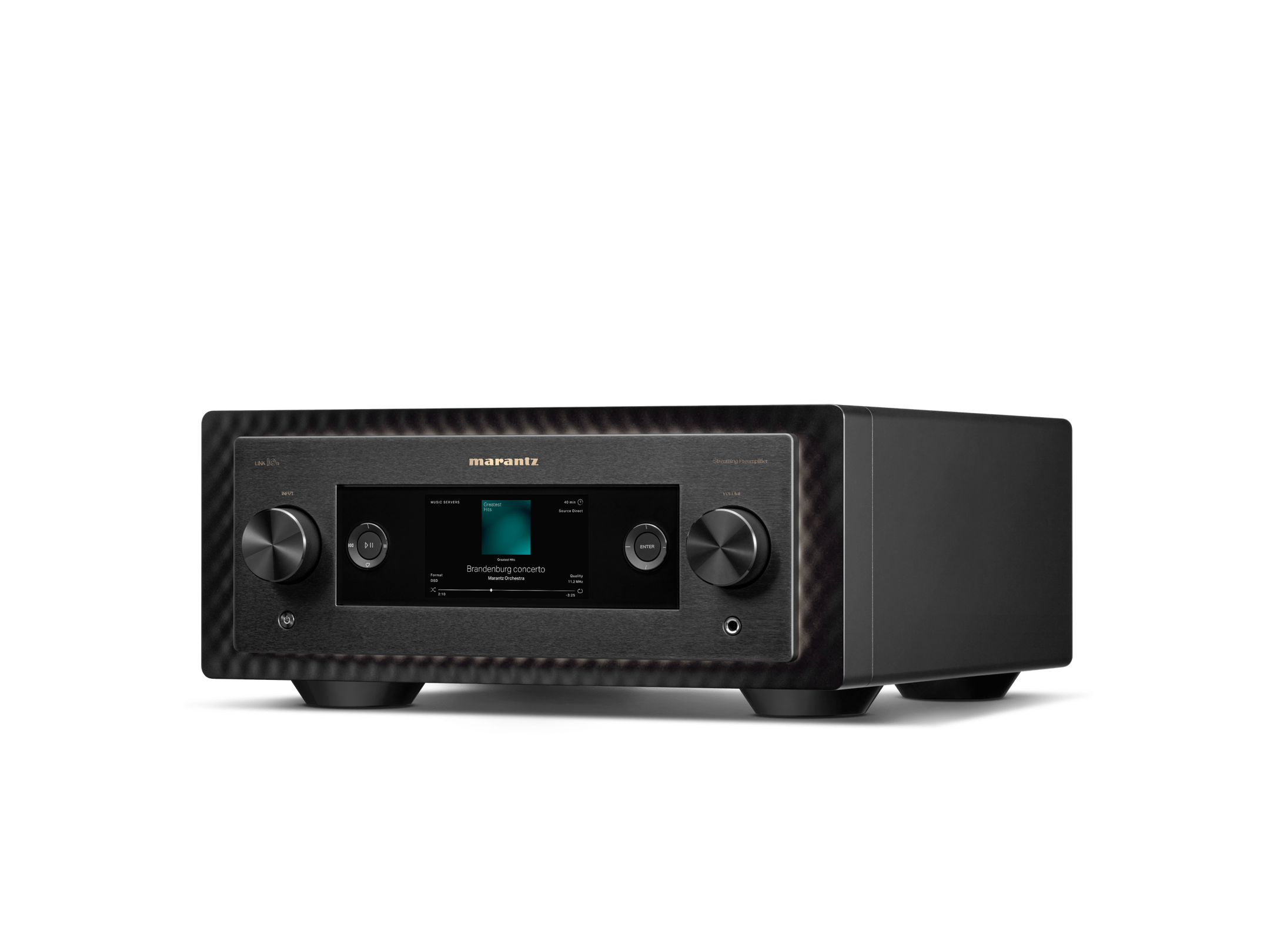

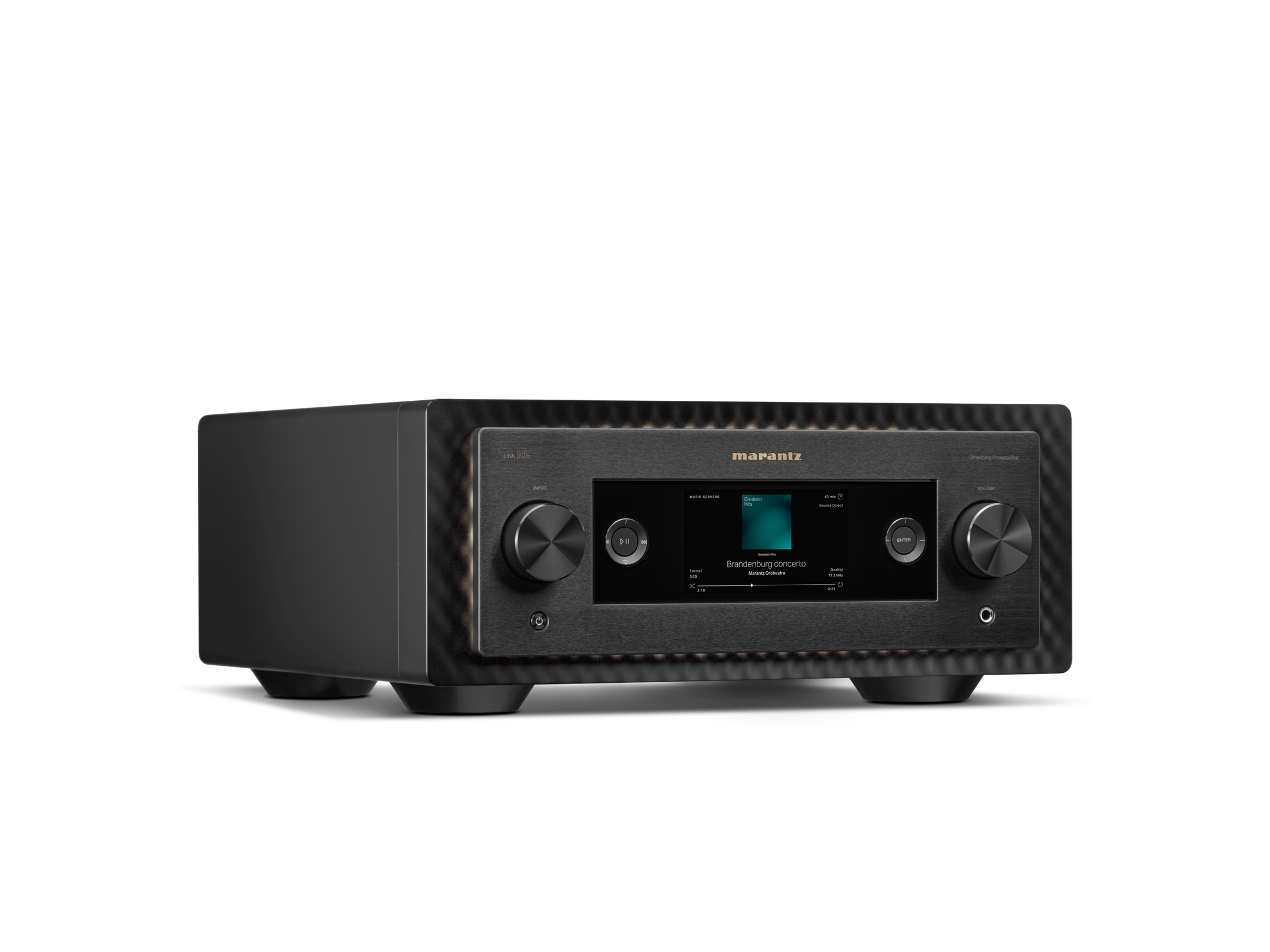

Marantz LINK 10n

• Hi-Res audio support
• HEOS® Built-in
• Hi-Res Color New HD TFT Color Display
• Newest HDAM and MM circuits
• HDMI ARC with CEC support
• 2.1 channel subwoofer output

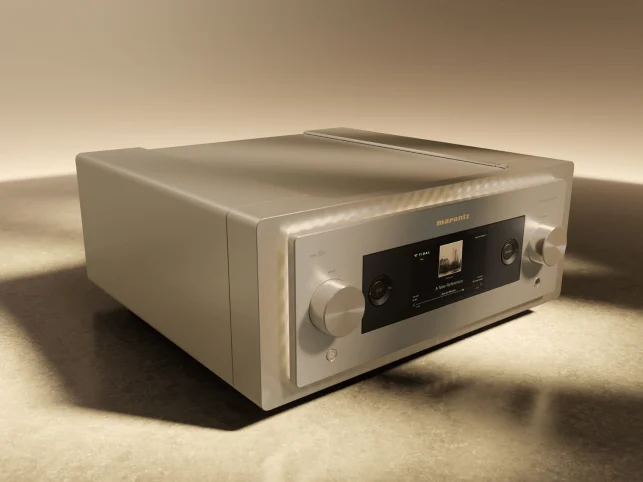

The Best of the Best

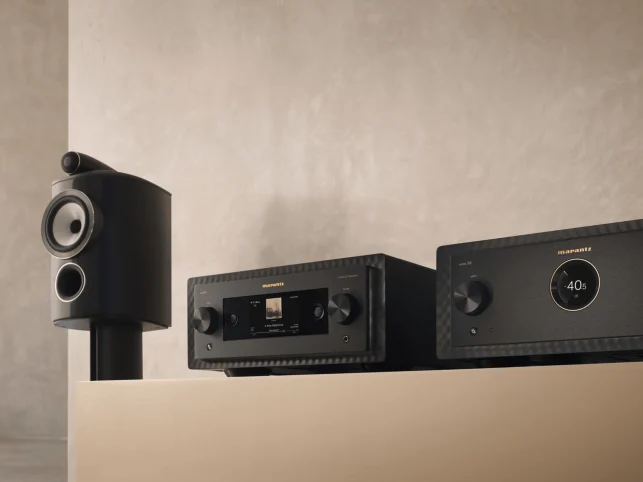

Sound Master Tuned

As the flagship digital player in the Marantz portfolio, LINK 10n features the best measured performance of any digital product we’ve ever produced. Through extensive and careful listening, the Sound Master has selected numerous premium parts to be included in key circuits that elevate audible performance to a new standard of excellence.

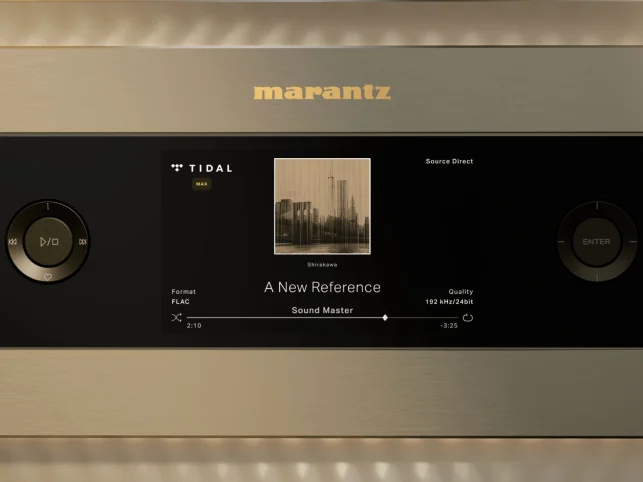

Intuitive Display

LINK 10n comes with a large high-resolution full-color display for a beautiful user interface and intuitive operation. Familiar arrow buttons make navigation effortless. Scroll to select your desired input and see source, track info, and play mode displayed on the screen, or enjoy easy HEOS onboarding and access to the app via a QR code.

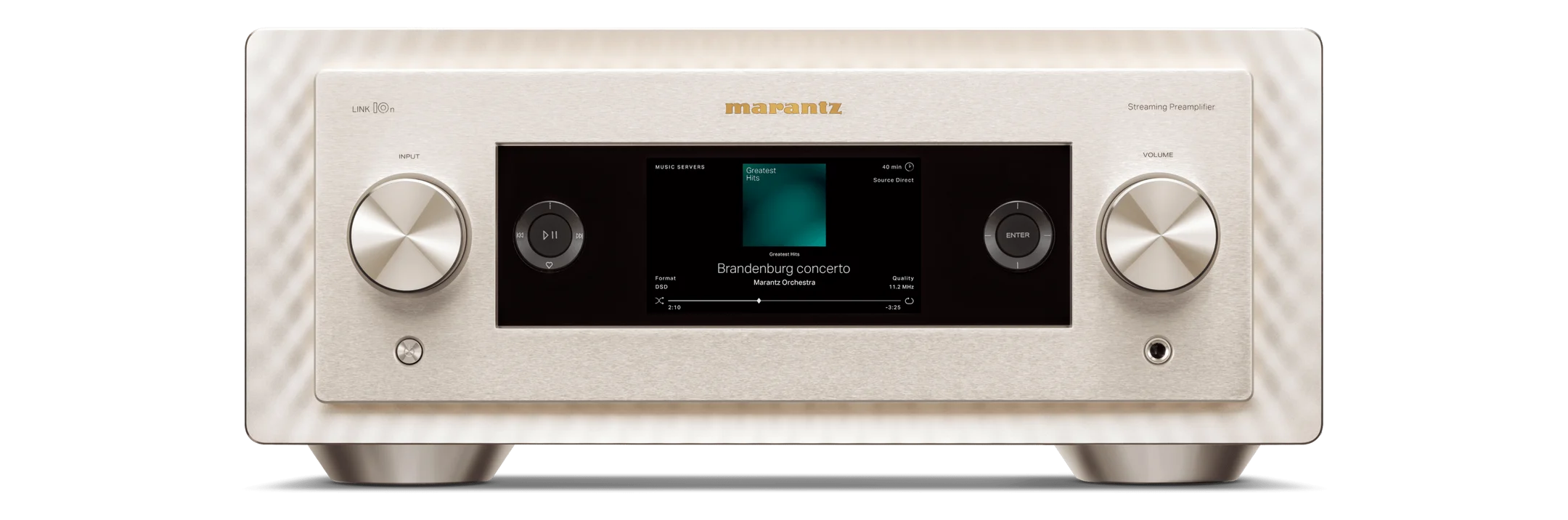

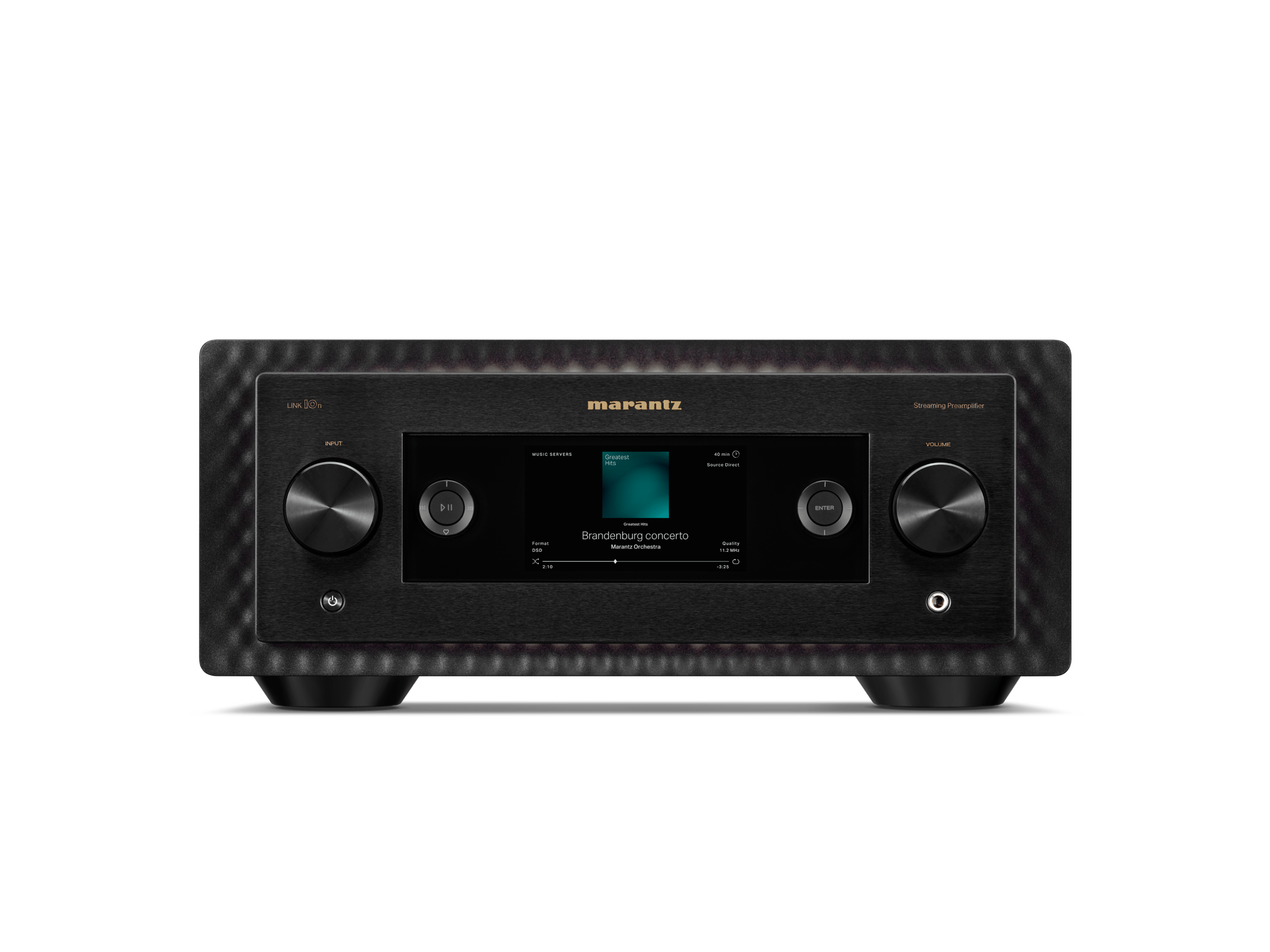

Marantz Industrial Design

Machined and brushed aluminum control surface, sculpted backshell, spun knobs, and high-resolution full color display are each striking features of 10 Series components. The design is both distinctively Marantz, drawing inspiration from classic models, and progressively modern.

Preamplifier Function

LINK 10n can act as a complete preamplifier front-end for your system, with all the functions of a modern high-end stereo system. Complete with single ended and balanced analog inputs, digital inputs, and a Marantz Premium Phono EQ supporting both MM and MC cartridges, it is also a fully featured front end for even the highest performance stereo systems.

Specifications

• Unit (W×H×Dmm)
  440 × 192 × 472 (with antenna)
• Net weight
  33.3kg

Audio

• Frequency Response
  PCM 2Hz–50kHz (-3dB)
• Harmonic distortion
  PCM 0.0004%
• S/N
  PCM 0.0004%
• Dynamic range
  PCM 0.0004%
• Line Output Leve
  UNBALANCED : 2.0Vrms
  BALANCED : 4.0Vrms
• Headphone Output Level
  130mW / 32 ohms
• Frequency Response (analog input)
  5 Hz–100 kHz (+0dB/-3 dB)
• Harmonic distortion (analog input)
  0.001% (20Hz–20kHz)
• S/N
  PHONO (MC) : 76dB
  HONO (MM) : 88dB
  BALANCED : 122dB
  LINE : 122dB
• Phono Input sensitivity
  MM : 8mV
  MC : 80mV
• Phono Input impedance
  MC Low : 32 ohms
  MC Mid : 100 ohms
  MC High : 390 ohms
  MM : 39 kohms
• Power Consumption
  7W
  Less than 0.3W (at Standby)
  Less than 2W (at Network Control On: Bluetooth, Ethernet, Wi-Fi, USB)

Audio Feature

• Output Circuit
  New HDAM
• Power Transformer
  Toroidal
• Pre Amplifier Circuit
  New HDAM High Grade
  Full balance
• Volume
  Electric (MUSES 72323)
  Variable gain
• Bass / Treble / Mid / Balance Control
  Yes / Yes / No / Yes
• Type of Tone Control
  Electric
• Headphone Circuit
  Discrete
• H/P Amp Gain Setting
  Yes (Low / Mid / High)
• H/P On.Off Setting
  H/P Off automatically, when in use
• DAC Circuit
  New MMM-Conversion
• Dither
  MMM-Stream
  (Dither 1, 2, Off)
• Noise Shaper
  MMM-Stream
  Balanced, Natural, Dynamic Music, Dymanic Voice)
• Digital Filter
  MMM-Stream
  Filter 1, 2 Selectable
• Jitter Reducer
  Yes
• DAC Master Clock Design (No Support for Network Playback)
  Yes
• Asynchronous mode (for USB-B input)
  Yes
• Isolator (for USB-B input)
  Yes (Complete Isolation System Duo)

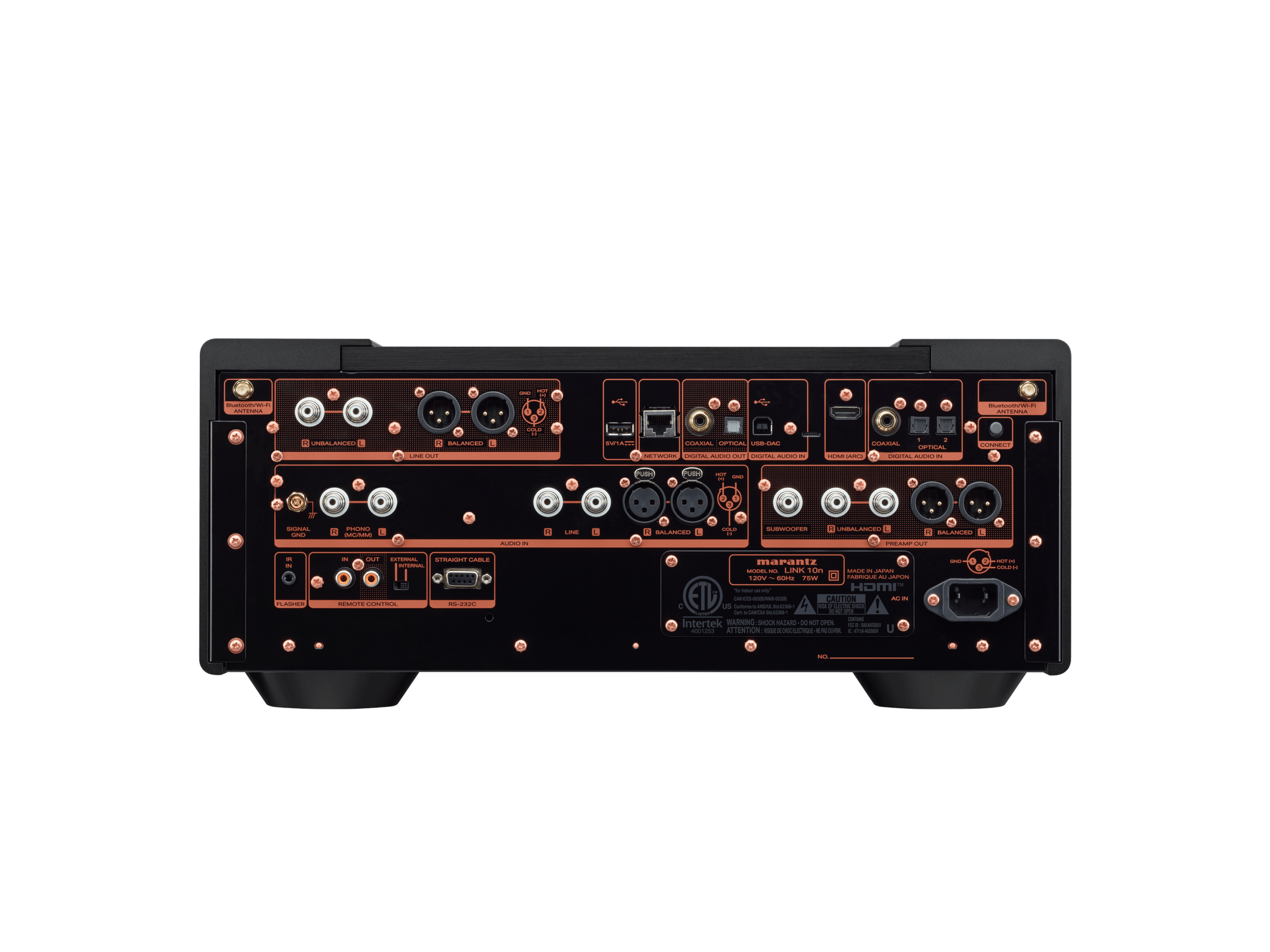

• Fixed Analog Output (RCA)
  Cinch × 1
  Thick nickel plated independent terminals
• Pre / Variable Audio Output (RCA)
  Cinch × 1
  Thick nickel plated independent terminals
• Fixed Balanced XLR Output
  Yes (1 Pair)
• Pre/ Variable Balanced XLR Output
  Yes (1 Pair)
• RCA Input
  Cinch × 1
  Thick nickel plated independent terminals
• Balanced XLR Input
  Yes (1 Pair)
• Phono input
  Yes (MM / MC)
  Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
  Thick nickel plated independent terminals
• Optical input / output (Maximum Support)
  2 / 1 (on/off switchable)
  44.1 kHz – 192 kHz
• Coaxial input / output (Maximum Support)
  1 / 1 (on/off switchable)
  44.1 kHz – 192 kHz
• HDMI input / output
  No / Yes (ARC)
• Headphone Output
  Yes (Φ6.3 ×1)
• Subwoofer
  Yes with LP filter adjustable

Easy to Use

• App
  HEOS app
• Remote Controller
  10 series universal Remote control
• Front Panel Display
  New HD TFT Color Display
• Display Language
  N: (English/ German/ French/ Italian/ Dutch/ Spanish/ Swedish/ Polish/ Russian)
  U: (English/ French/ Spanish)
  K: ( Simplified Chinese/English)
  F: (Japanese/ English)
• Dimmer for Front Display
  20 steps
• Level meter
  No
• Volume Display
  0 –100 / 0.5 step (defalut)-infinity/-99.5dB – 0dB / 0.5 step switchable
• Voice Assistant
  Apple Siri
  Google Assistant
• Control with App via Network Player (Use Remote Control Bus)
  No
• External Amp Control with App (Use Remote Control Bus)
  Yes
• Synchronously turn on amplifier and switch the input (Use Remote Control Bus)
  Yes
• HDMI CEC
  Yes
• Remote Controller
  RC004PMND
• Battery
  Yes (AAA ×2)
• Power Cord
  Yes (ALL region : Audio Grade : OFC)
• Other
  Stereo RCA Cable ×1
  Remote connector cable ×1
  CoA card
