Eversolo AMP-F2

Description

Dynamic Power Detailed Presentation

The AMP-F2, developed in collaboration between the Starke Sound team and the Eversolo team, is based on the innovative N600 module created by the Starke Sound team. It boasts a high sampling rate of up to 600KHz. Simultaneously, it significantly reduces noise and enhances dynamic performance through the newly designed SAPS audio-specific switch power supply. It employs an efficient Class D amplification structure, cou- pled with optimized circuits to maximize audio quality. The AMP-F2 is bridgeable, allowing flexible configuration for 2-channel or mono-channel setups when needed.

Vigorous Output Bridged Support

The AMP-F2 is equipped with Starke Sound’s NS600 amplifier module, each channel can output a con- stant 250W RMS (42) @ 1% THD+N. When bridged, it can support up to 450W RMS (2Q) with THD+ N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.

Accurate Sound Perfect Experience

The NS600 module employs PurePath™ Ultra-HD technology and advanced integrated feedback design, fea turing high-speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio quality.

Powerful Power Drive

Utilizing a 600W high-efficiency, low-ripple, low-EMI switch power supply, it delivers consistent and powerful output, extremely low noise, enhancing the overall dynamic performance of the system.

Environmentally Friendly

Low Power Consumption AMP-F2 has an extremely low standby power (0.5W) and idle power consumption (14W), complying with the European Union ErP standards.

Aluminum Body Shielding Design

Complete self-protection and anti-interference design to avoid disturbances from various electrical environments.

One-Touch Activation Seamless Control

The AMP-F2 is equipped with standard 12V TRIGGER IN and TRIGGER OUT function, allowing it to be synchronized with other devices that support the standard TRIGGER interface for power on and off; using the USB to TRIGGER adapter cable provided with the AMP-F2, you can connect the USB Type A interface of the DMP-A6 to the TRIGGER IN of the AMP-F2 to achieve synchronization.

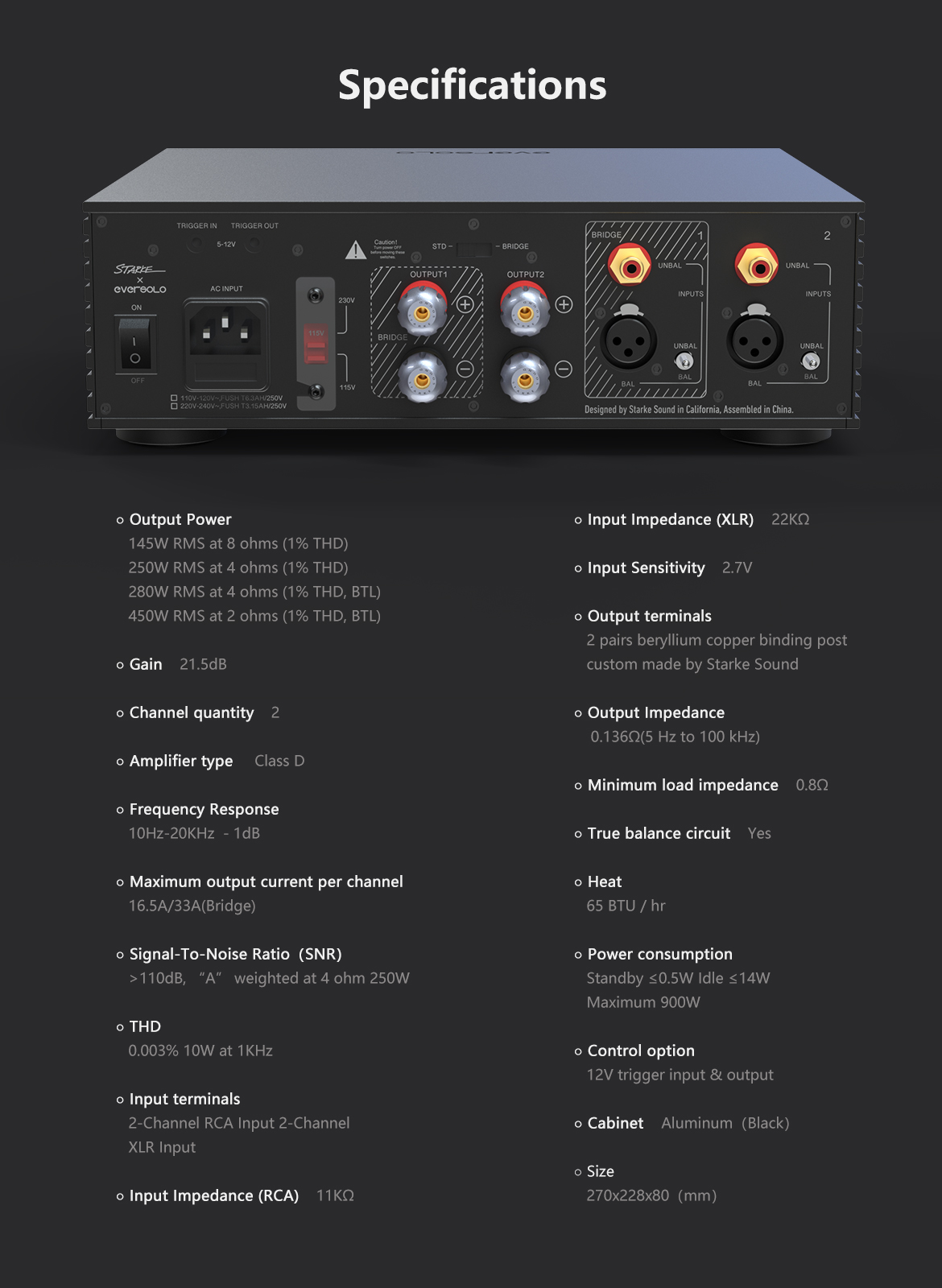

Output Power
145W RMS at 8 ohms (1% THD)
250W RMS at 4 ohms (1% THD)
280W RMS at 4 ohms (1% THD, BTL)
450W RMS at 2 ohms (1% THD, BTL)
Gain
21.5dB
Channel quantity
2
Amplifier type
Class D
Frequency Response
10Hz-20KHz – 1dB
Maximum output current per channel
16.5A/33A(Bridge)
Signal-To-Noise Ratio (SNR)
> 110dB, ”A” weighted at 4 ohm 250W
THD
0.003% 10W at 1KHz
Input terminals
2-Channel RCA Input
2-Channel XLR Input
Input Impedance (RCA)
11 Kohm
Input Impedance (XLR)
22 K0hm
Input Sensitivity
2.7V
Output terminals
2 pairs beryllium copper binding post custom made by Starke Sound
Output Impedance
0.136ohm (5 Hz to 100 kHz)
Minimum load impedance
0.8 ohm
True balance circuit
Yes
Heat
65 BTU / hr
Power consumption
Standby ≤0.5W
Idle ≤14W
Maximum 900W
Control option
12V trigger input & output
Cabinet
Aluminum (Black)
Size
270x228x80 (mm)
